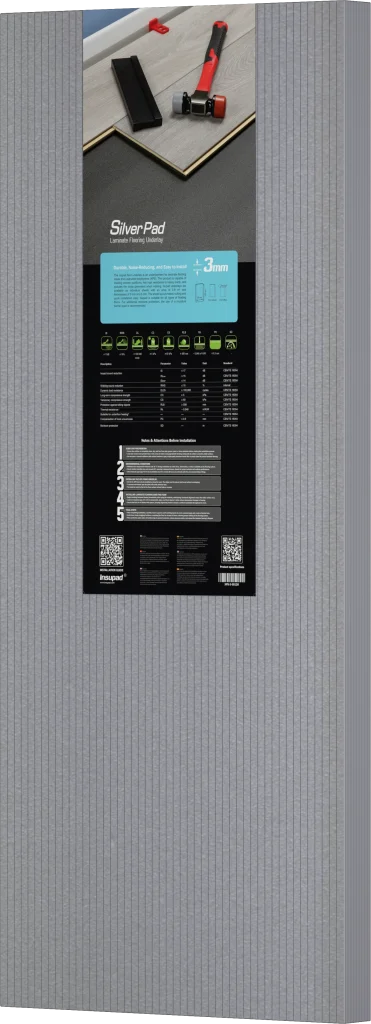

XPS Laminate Flooring Underlay
Product Description
The Insupad floor underlay is an underlayment for laminate flooring made from extruded polystyrene (XPS). This product is capable of leveling uneven subfloors, has high resistance to heavy loads, and reduces the noice generated when walking. The sheet layout makes cutting and quick installation easy. Insupad is suitable for all types of floating floors. For additional moisture protection, the use of a moisture barrier layer is recommended.
Product Description
IS
≤ 17dB
RWS
≤ 20 %
DL
≥ 50,000
CC
≥ 20
CS
≤ 200
RLB
≥ 50
Rλ
~ 0.09
PC
≤ 0.5
SD
150 – 200
| Parameter | Symbol | Unit | Short Description | 3mm |
|---|---|---|---|---|
| Impact Sound Reduction | IS | dB | Reduces noise transmitted through the floor | 17 - 19 |
| Radiated Walking Sound | RWS | -- | Improves walking comfort and step sound | +20 % |
| Dynamic Load | DL25 | cycles | Ensures durability under repeated dynamic loads | > 50,000 |
| Compressive Creep | CC | kPa | Maintains stability under long-term pressure | 20 - 30 |
| Compressive Strength | CS | kPa | Resists compression and heavy static loads | 200 -250 |
| Protection Against Falling Objects | RLB | N / mm | Protects surface from falling object impact | 500 N |
| Thermal Resistance | Rλ | m²K/W | Enhances thermal insulation performance | 0.09 |
| Compensation of Local Unevenness | PC | mm | Corrects minor subfloor unevenness | ≤ 0.5 |
| Water Vapor Diffusion | SD | m | Blocks moisture and vapor penetration | 150 - 200 |
