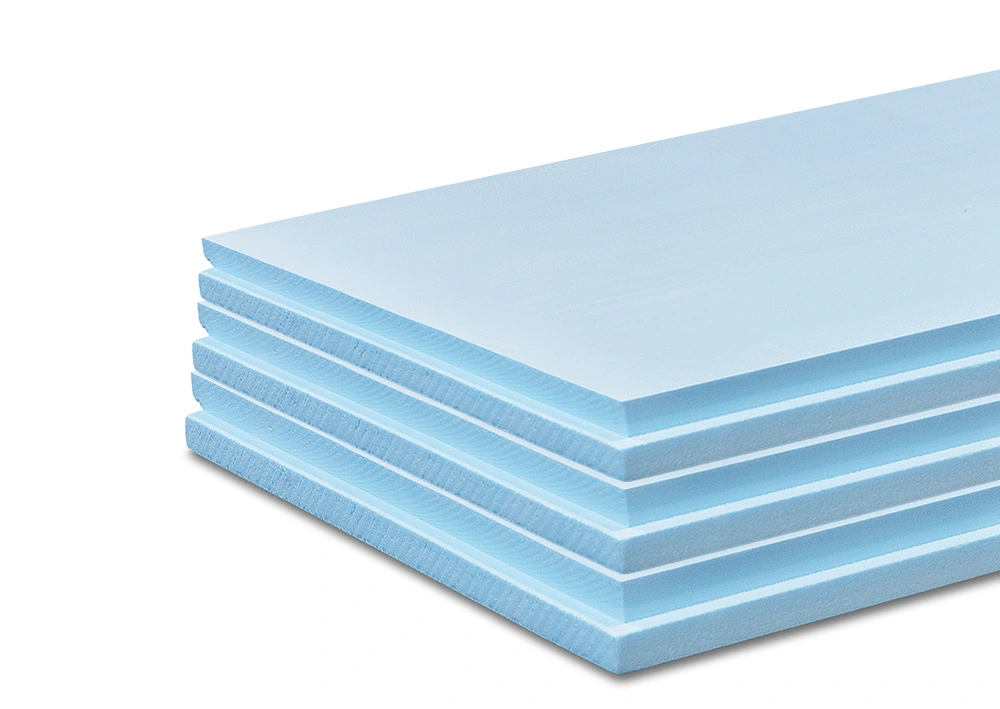

Insulation XPS Board
Product Description
The Insupad floor underlay is an underlayment for laminate flooring made from extruded polystyrene (XPS). This product is capable of leveling uneven subfloors, has high resistance to heavy loads, and reduces the noice generated when walking. The sheet layout makes cutting and quick installation easy. Insupad is suitable for all types of floating floors. For additional moisture protection, the use of a moisture barrier layer is recommended.
Product Description
| Technical property | Value / Range | Unit | Description |
|---|---|---|---|
| Density | 35 ± 2 | kg/m³ | High cell density ensures greater compressive strength and low water absorption |
| Standard Thickness | 50 | mm | Equivalent to 5 cm |

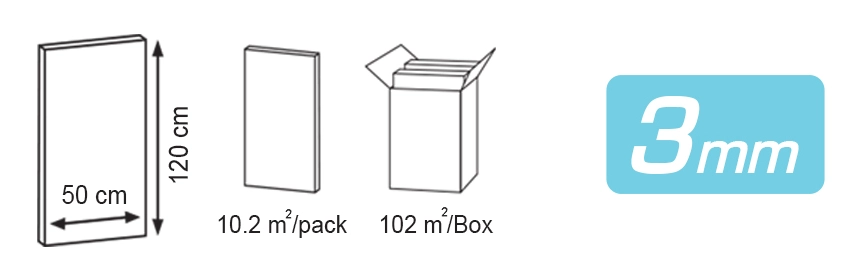

| Sheet Dimensions | 1200 × 600 | mm | --- |
| Color | Gray / Blue | --- | Depends on brand |
| Thermal Conductivity (λ) | 0.028 – 0.032 | W/m·K | Excellent thermal insulation performance |
| Compressive Strength (at 10% deformation) | ≥ 300 | kPa | Suitable for under-slab, cold storage floors, walls, and roofs |
| Water Absorption (by immersion, 28 days) | ≤ 0.5 | % by volume | Closed-cell structure minimizes moisture absorption |
| Flexural Strength | ≥ 450 | kPa | High mechanical strength |
| Water Vapor Diffusion Resistance | 150 – 250 | μ | Very low vapor permeability |
| Service Temperature Range | -50 to +75 | °C | Stable performance under wide temperature range |
| Reaction to Fire | Class E (EN 13501-1) | --- | Self-extinguishing (with fire-retardant additives) |
| Cell Structure | Closed-cell | --- | Prevents water and air penetration |
| Approx. Weight per Sheet (1.2 × 0.6 × 0.05 m) | 1.3 – 1.5 | kg | Lightweight and easy to handle |
